Here is a tutorial to flash ur nokia s40 phone with original firmware files using J.A.F.
Download JAFSetup 1.98.62.rar : DOWNLOAD NOW
Download PKEY EMULATOR : DOWNLOAD NOW
Downalod and install Nokia PC Suite : DOWNLOAD NOW
Download Navifirm : DOWNOAD NOW
*you need to have latest version of .net installed on your pc*
Install JAF setup.
Here I m taking Nokia 2700c for flashing.
Required files for flashing purpose are shown as the figure below:
Now come to the procedure for downloading your firmware files
1. open navifirm.
2. select ur RM-Type in the 1st column. To know ur phone's RM-Type, dial *#0000# in ur phone and note the RM-type and ur firmware version too.
(for my 2700c, its RM-561)
3. select ur firmware version in the 2nd column
NOTE: Don't select any lower firmware version. U may select any higher version but never downgrade. By Downgrading u will get a bricked phone.
4. select the variant in the 3rd column according to ur phone's product code. To know the product code, just open the battery and u will see the RM-type and the product code.
(As u can see mine product code is 0588814)
5. In the 4th i.e filelist column u'll see 6 0r 7 files but u have to download the ".mcusw", ".ppm" & ".image" these 3 files.
6. click on 'add to download task' then select the folder where u want to save them. then click download.
7. Your downloading will be started.
8. now just rename the .mcusw file to .c0r (c-zero-r not c-o-r)
refer the picture below as i have renamed it
Now the procedure for flashing ur phone
1. connect ur phone with pc via usb cable in pc suite mode.(phone should be fully charged)
2. Run Pkey emulator as administrator [For Windows 7 users: right click Pkey emulator >> Properties >> navigate to compatibility Tab >> tick "run this program in compatibility mode for: (Windows XP service Pack 3)]

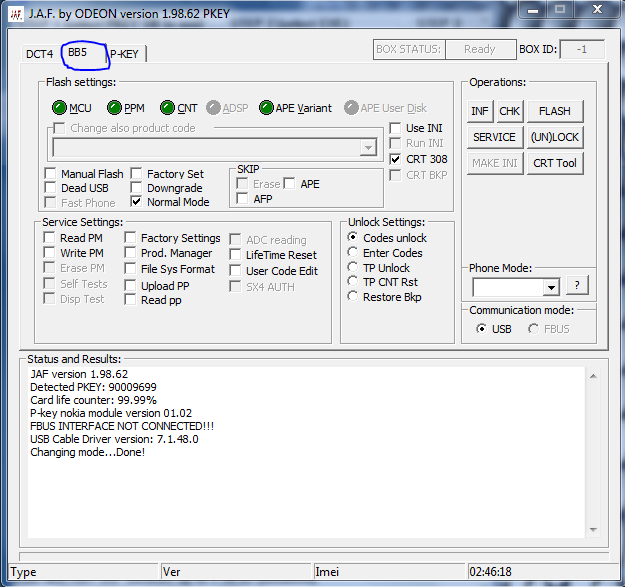

3. ur jaf will open as the picture below. then click on 'go'. u will get box driver error, Don`t panic press ok.

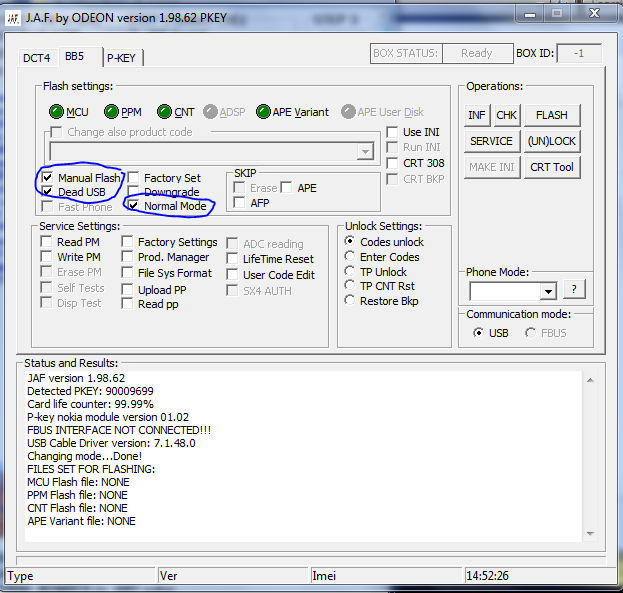

5. then check "manual flash", "dead usb"...."normal mode" & Uncheck "crt 308". And see ur jaf is looking exactly like the below picture.
EDIT: Uncheck the CRT 308 and see ur jaf exactly looks like this:
6. click on MCU button and select the .c0r file from ur firmware files' downloaded folder.
7. click on PPM button and select the .ppm file.
8. click on CNT button and select .image file.
9. now see the MCU, PPM & CNT buttons r glowing green as shown in the picture below.
10. now switch off ur phone and disable ur PC suite or uninstall it.
11. click on FLASH. U will get a warning message. Press yes.
12. And after that jaf will search for phone and will ask to power on ur phone. Immediately press ur phone's switch on button until it is recognized. It ll take maximum 2-3 seconds for ur phone to b recognized. So don't hold ur power button. Just press for 2-3 seconds and leave it when u hear the sound.
13. ur flashing will start.
14. wait for 3-4 minutes.
15. u will hear a sound when it says DONE.
Flash sucessful.
Happy Flashing. Laughing
Download JAFSetup 1.98.62.rar : DOWNLOAD NOW
Download PKEY EMULATOR : DOWNLOAD NOW
Downalod and install Nokia PC Suite : DOWNLOAD NOW
Download Navifirm : DOWNOAD NOW
*you need to have latest version of .net installed on your pc*
Install JAF setup.
Here I m taking Nokia 2700c for flashing.
Required files for flashing purpose are shown as the figure below:
Now come to the procedure for downloading your firmware files
1. open navifirm.
2. select ur RM-Type in the 1st column. To know ur phone's RM-Type, dial *#0000# in ur phone and note the RM-type and ur firmware version too.
(for my 2700c, its RM-561)
3. select ur firmware version in the 2nd column
NOTE: Don't select any lower firmware version. U may select any higher version but never downgrade. By Downgrading u will get a bricked phone.
4. select the variant in the 3rd column according to ur phone's product code. To know the product code, just open the battery and u will see the RM-type and the product code.
(As u can see mine product code is 0588814)
5. In the 4th i.e filelist column u'll see 6 0r 7 files but u have to download the ".mcusw", ".ppm" & ".image" these 3 files.
6. click on 'add to download task' then select the folder where u want to save them. then click download.
7. Your downloading will be started.
8. now just rename the .mcusw file to .c0r (c-zero-r not c-o-r)
refer the picture below as i have renamed it
Now the procedure for flashing ur phone
1. connect ur phone with pc via usb cable in pc suite mode.(phone should be fully charged)
2. Run Pkey emulator as administrator [For Windows 7 users: right click Pkey emulator >> Properties >> navigate to compatibility Tab >> tick "run this program in compatibility mode for: (Windows XP service Pack 3)]
3. ur jaf will open as the picture below. then click on 'go'. u will get box driver error, Don`t panic press ok.
5. then check "manual flash", "dead usb"...."normal mode" & Uncheck "crt 308". And see ur jaf is looking exactly like the below picture.
EDIT: Uncheck the CRT 308 and see ur jaf exactly looks like this:
6. click on MCU button and select the .c0r file from ur firmware files' downloaded folder.
7. click on PPM button and select the .ppm file.
8. click on CNT button and select .image file.
9. now see the MCU, PPM & CNT buttons r glowing green as shown in the picture below.
10. now switch off ur phone and disable ur PC suite or uninstall it.
11. click on FLASH. U will get a warning message. Press yes.
12. And after that jaf will search for phone and will ask to power on ur phone. Immediately press ur phone's switch on button until it is recognized. It ll take maximum 2-3 seconds for ur phone to b recognized. So don't hold ur power button. Just press for 2-3 seconds and leave it when u hear the sound.
13. ur flashing will start.
14. wait for 3-4 minutes.
15. u will hear a sound when it says DONE.
Flash sucessful.
Happy Flashing. Laughing
